6 Inch Small Mud Dredging Boat
, Mud Slurry Dredging Boat
, Full Hydraulic Mud Dredging Boat

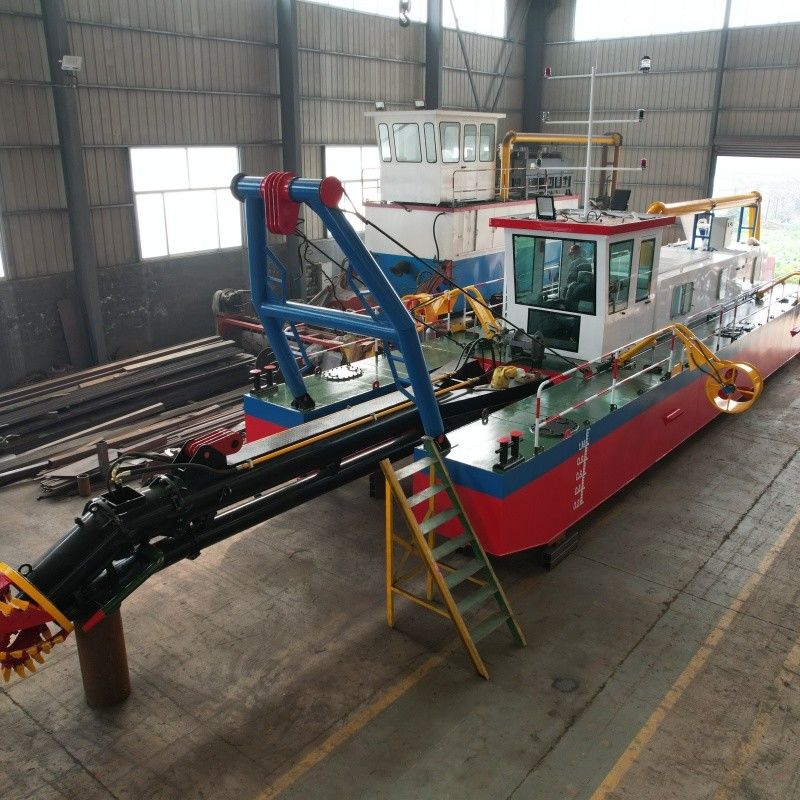

Full Hydraulic Small Mud Slurry Dredging Boat For Sale
Cutter suction dredger is widely used for sand dredging, mud dredging, port building and deepening,
the sand dredger can produce certain amount of vacuum, the sand and mud is conveying and discharging
by pipeline and floater.
Cutter suction dredger can be self-propelled or non self-propelled. The hull can be dismantle and box-like
structure. The dismantle type can be assembly at working place easily and be transported by road,
railway and container accordingly. The sand dredger is very convenient to install and move in the
working place. The power system of sand dredger can be electric system or diesel engine driving
system according to customers’ requirements.
| Model list for hydraulic cutter suction dredger |
| Model |
Inch |
Diameter
pipe
|
Water
flow
|
Solid
capacity |
Total
power
|
Dredging
depth
|
Discharge
distance
|
| YSCSD150 |
6 Inch |
150 mm |
260 m3/h |
30 cbm/h |
102 KW |
4m |
600 m |
| YSCSD200 |
8 Inch |
200 mm |
600 m3/h |
80 cbm/h |
213 KW |
6m |
800 m |
| YSCSD250 |
10 inch |
250 mm |
1,000 m3/h |
160 cbm/h |
367 KW |
8m |
1,100 m |
| YSCSD300 |
12 inch |
300 mm |
1,500 m3/h |
240 cbm/h |
591 KW |
10 m |
1,100 m |
| YSCSD350 |
14 inch |
350 mm |
2,400 m3/h |
360 cbm/h |
971 KW |
12m |
1,200 m |
| YSCSD400 |
16 Inch |
400 mm |
3,000 m3/h |
500 cbm/h |
1,057 KW |
14m |
1,400 m |
| YSCSD450 |
18 Inch |
450 mm |
3,500 m3/h |
700 cbm/h |
1,462 KW |
15m |
1,500 m |
| YSCSD500 |
20 Inch |
500 mm |
3,800 m3/h |
760 cbm/h |
1,648 KW |
15m |
1,600m |
| YSCSD600 |
24 Inch |
600 mm |
6,000 m3/h |
900 cbm/h |
2,511 KW |
15m |
1,800 m |
| YSCSD650 |
26 Inch |
650 mm |
7,000 m3/h |
1,400 cbm/h |
3,705 KW |
Max.18m |
1,800m |
Advantages:
Standard design, allowing early delivery and low price.
Completely assembled and fully tested before delivery.
Simple, rapid assembly and dismantling.
Ready for operation on arrival at site.
Spare parts available from stock.
Transportable by road, rail or sea.
Long-time after-sale service agreement with customers.
Rational and practical design according to customers' request.
Assemble and test the machine within the period as agreed in the contract.
Free repair if quality problems emerge.
Free training of operation and maintenance for customers.
High quality accessories in low price.
Long-term following-up service.
Company:
Shandong Yongsheng Dredging Machinery Co.,Ltd. is specializing in the production of dredging
equipment, sand suction dredgers, weed-cutting boat, water cleaning boats, sludge solidification
equipment, sand washing equipment, mineral processing equipment, etc.
Our company has 20 years of professional equipment production experience, passed the ISO9001
quality system certification, and is a member of China Dredging association.
FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
